ECO S

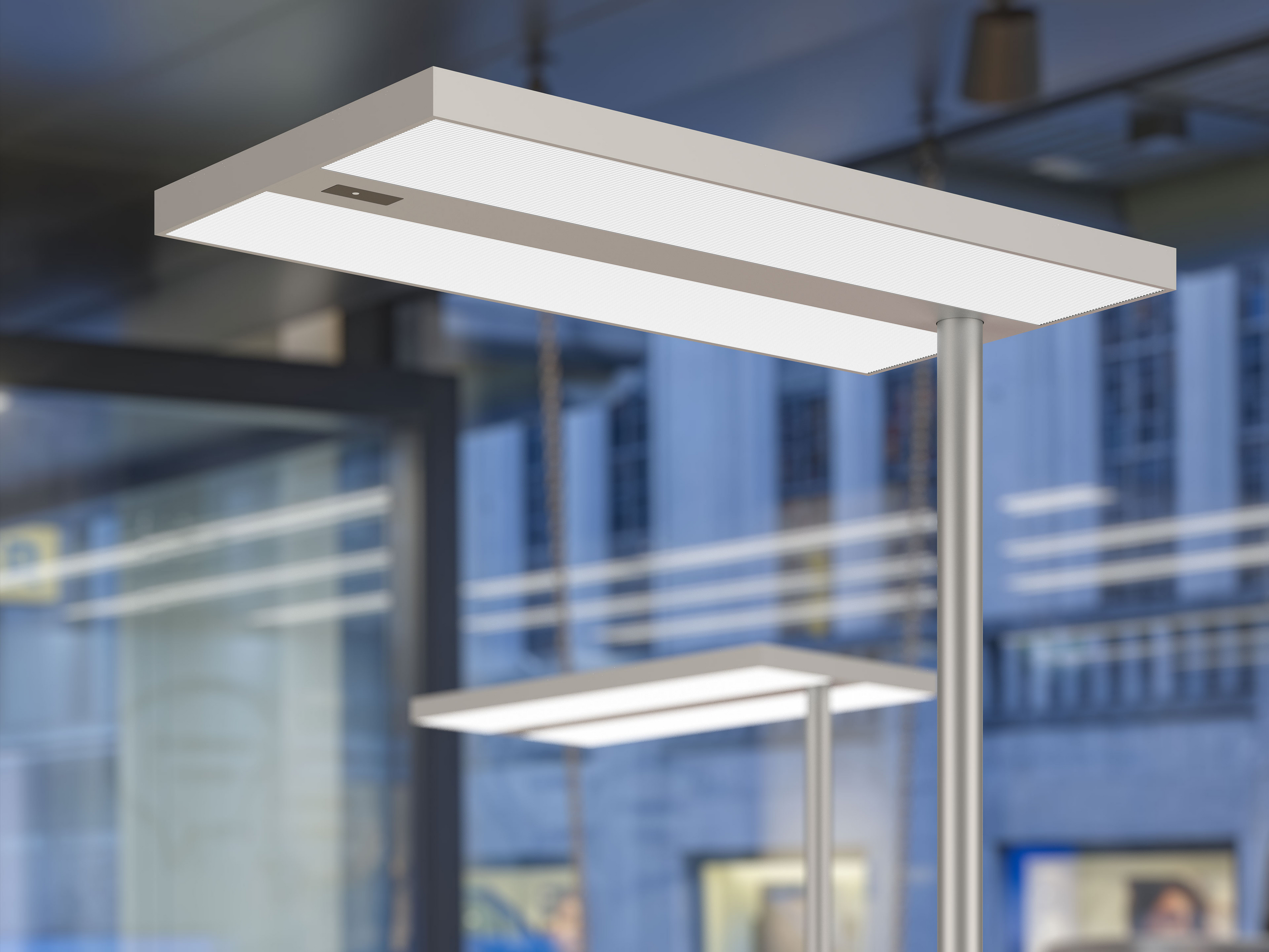

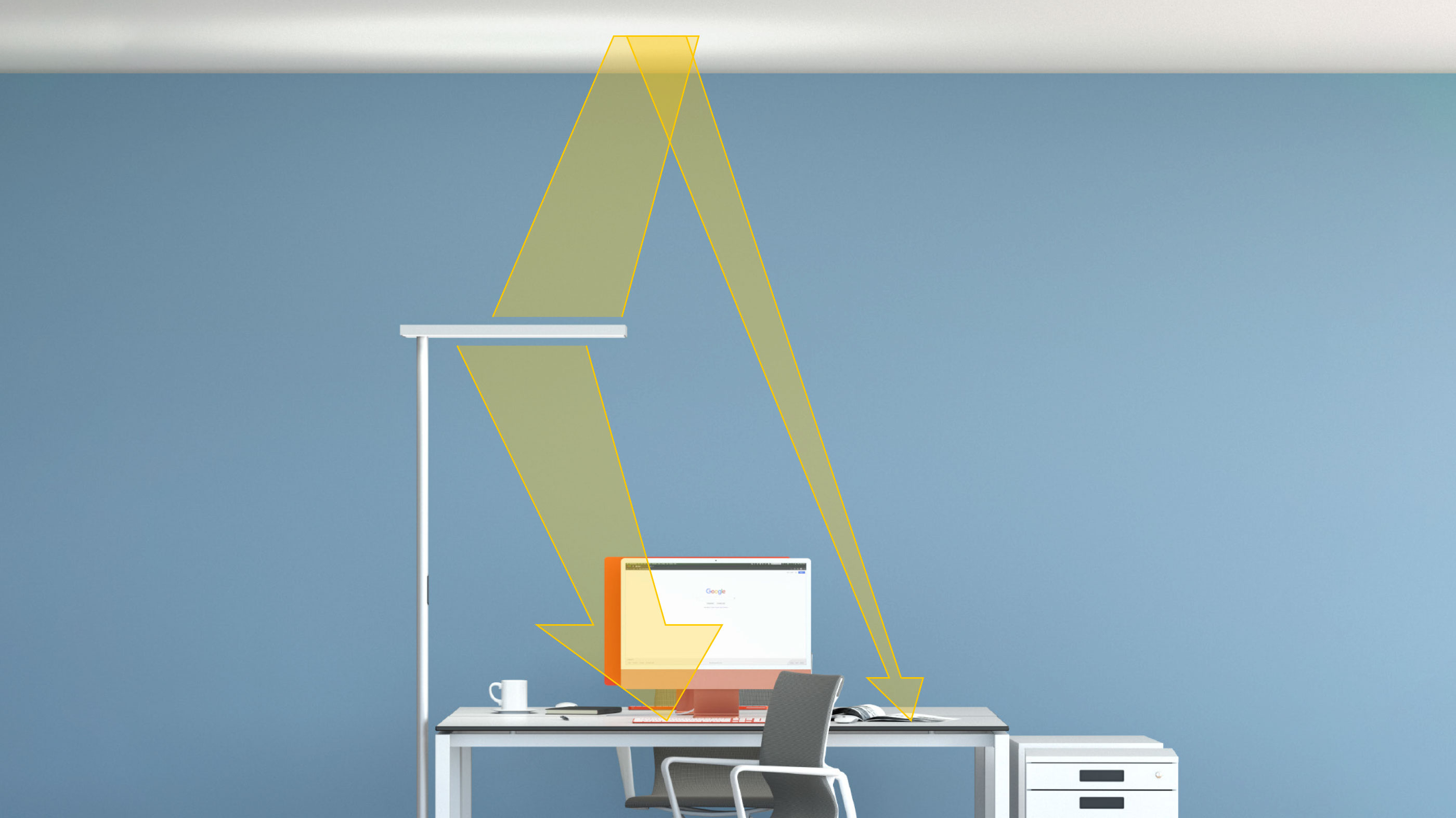

ECO S sets the standard for energy-efficient and ergonomic lighting solutions for the office setting. The impressive efficiency of up to 147 lumens per watt combined with the Sensonic EDR light control optimised for the application allows resources to be conserved while ensuring ergonomic workplace lighting. The patented light control system regulates the direct and indirect light output asynchronously, which significantly increases efficiency in use. With the slim profile of the luminaire head of just 30 mm thick and the simple design and choice of materials, the ECO S fits discreetly into any office.

Find all articles in our product finder

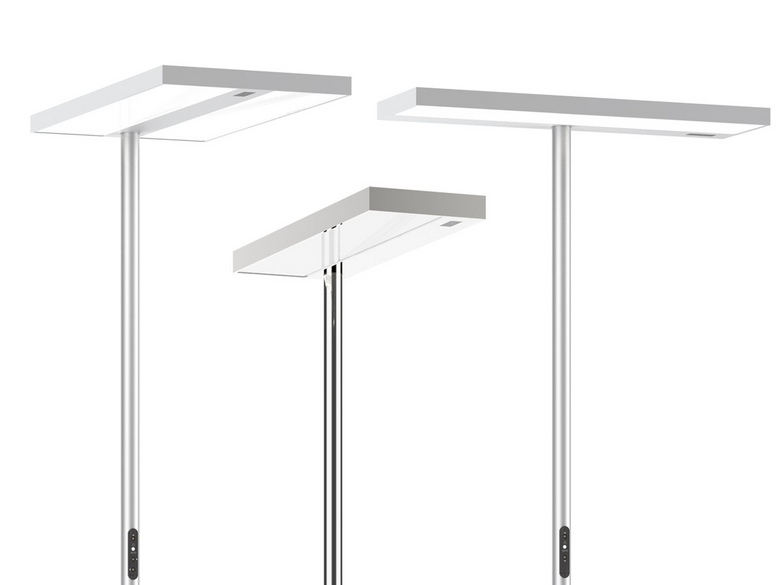

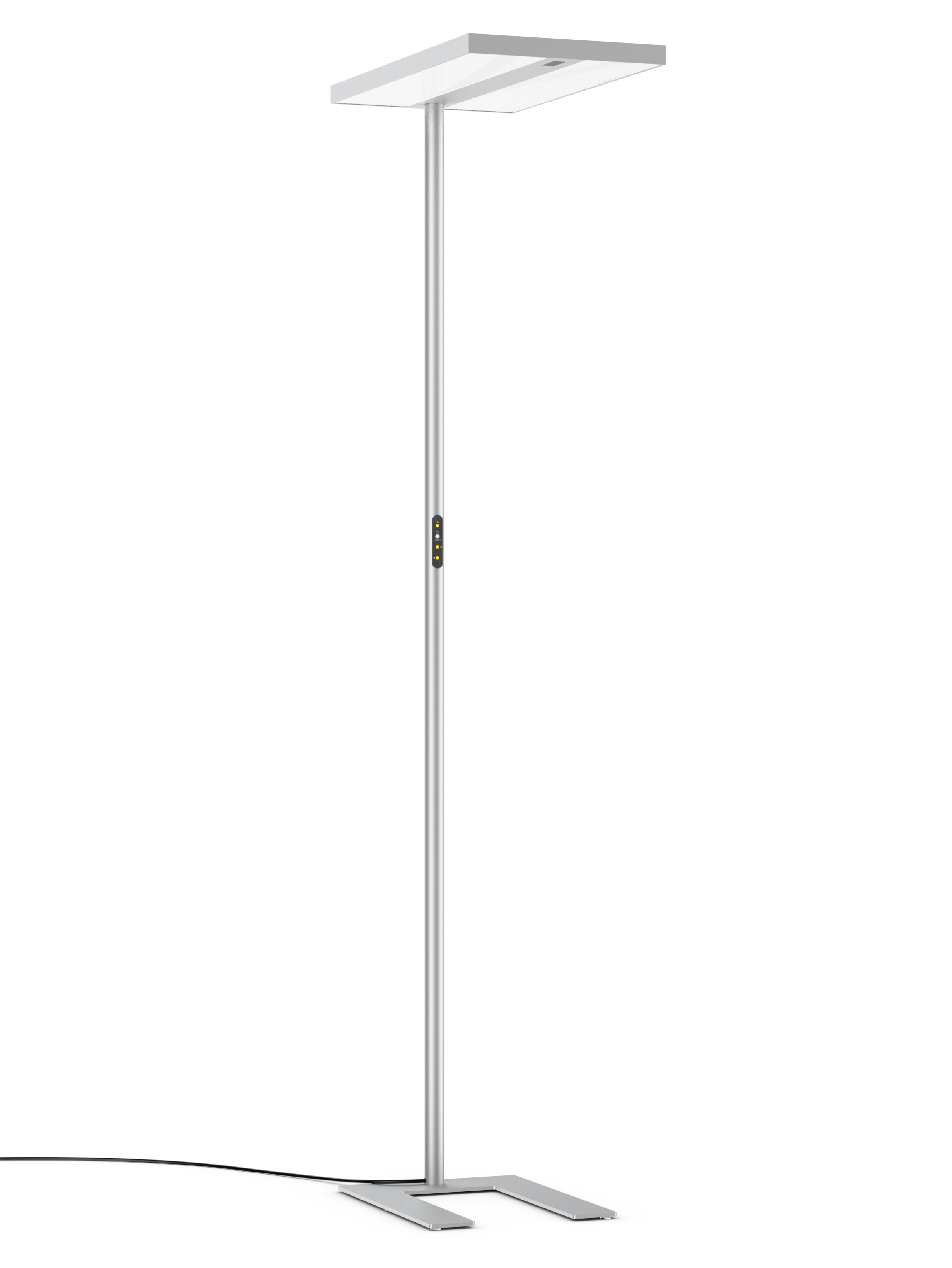

Thanks to state-of-the-art lighting technology, the ECO S office floor luminaire is top of the list when it comes to energy efficiency. With up to 151 lumens per watt, it is one of the most energy-efficient workplace luminaires on the market. The luminaires for two or four workstations have a net luminous flux of over 13 740 lumens with a connected wattage of 95 watts. ECO S is also available as an option with just a single light field for individual workplaces, whereby the connected wattage is reduced to 82 watts.

The very latest technology for greatest ergonomic comfort

A luminaire that is optimised for use is one of the most important requirements for ensuring people can work ergonomically. This is why the ECO S floor luminaire series has been designed with users’ needs always in mind.

Light is regulated without any flickering throughout the full dimming range from 0,5 per cent, without the individual dimming steps being perceptible. The combination of the mixing chamber reflector, diffusing film and longitudinal prismatic (LDP) cover in the direct light portion simultaneously achieves homogeneous illumination of the light field and glare suppression suitable for computer workstations.

Gentle adjustment of the light level

If the ambient light fades abruptly, the Sensonic EDR immediately adjusts the light intensity to ensure the desired brightness without any noticeable interruption. In the case of slight changes in light, the control system reacts more slowly to the lighting situation, thus ensuring optimum lighting control for the user, which is as imperceptible as possible.

The control panel on the vertical tube allows users to adjust the lighting control system manually at any time, if required.

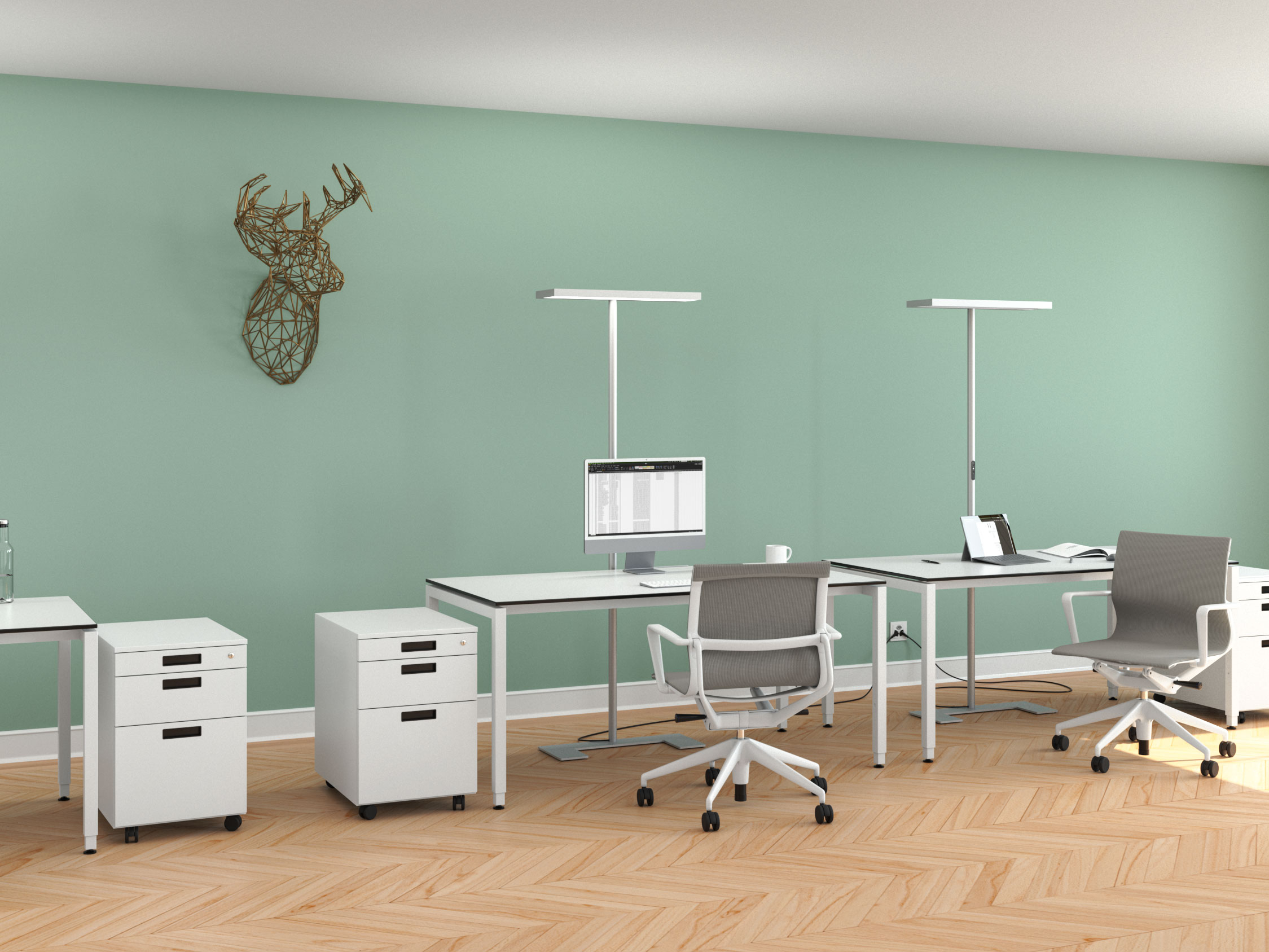

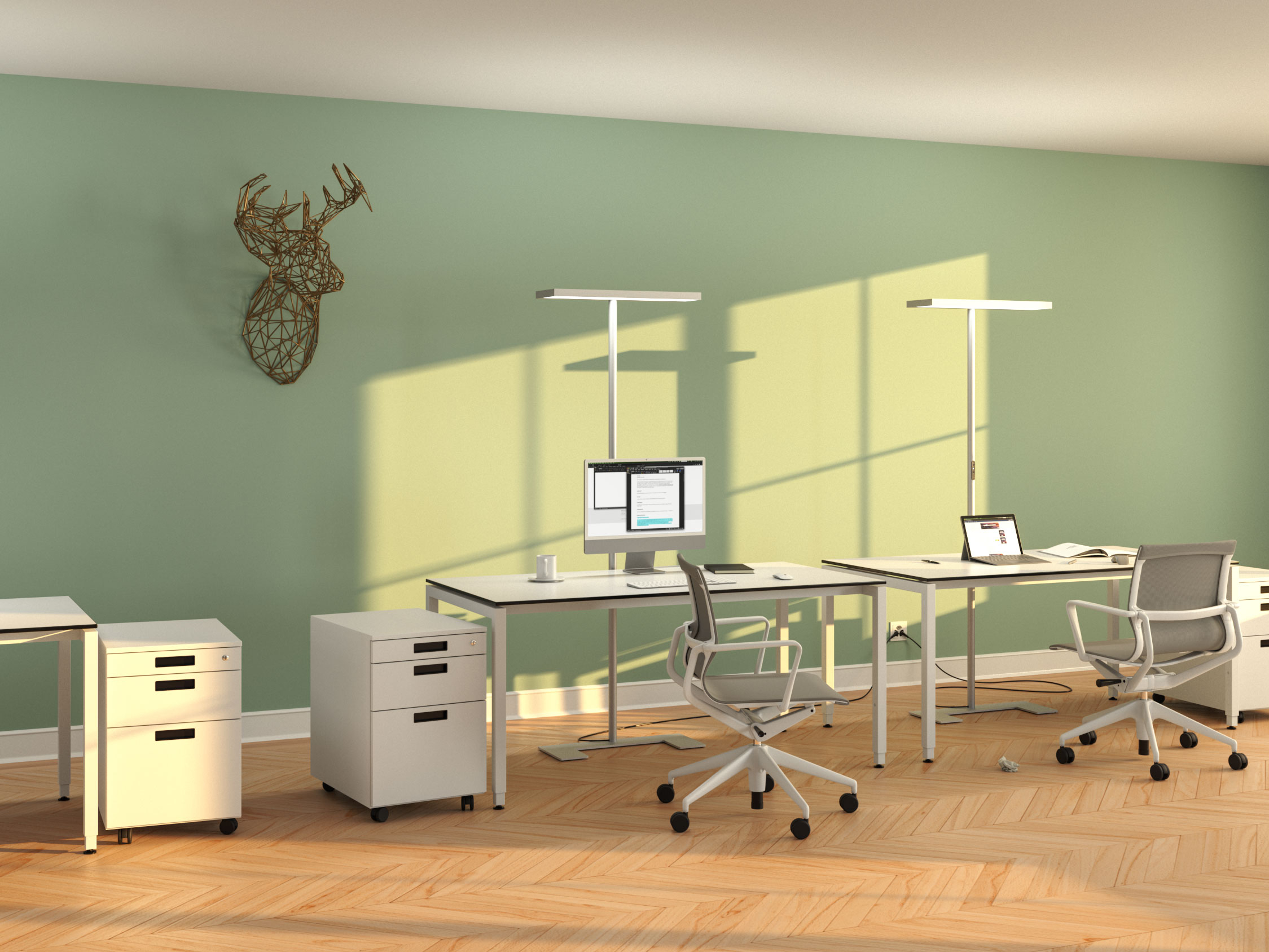

Situations with lots of daylight require only minimal assistance from artificial light

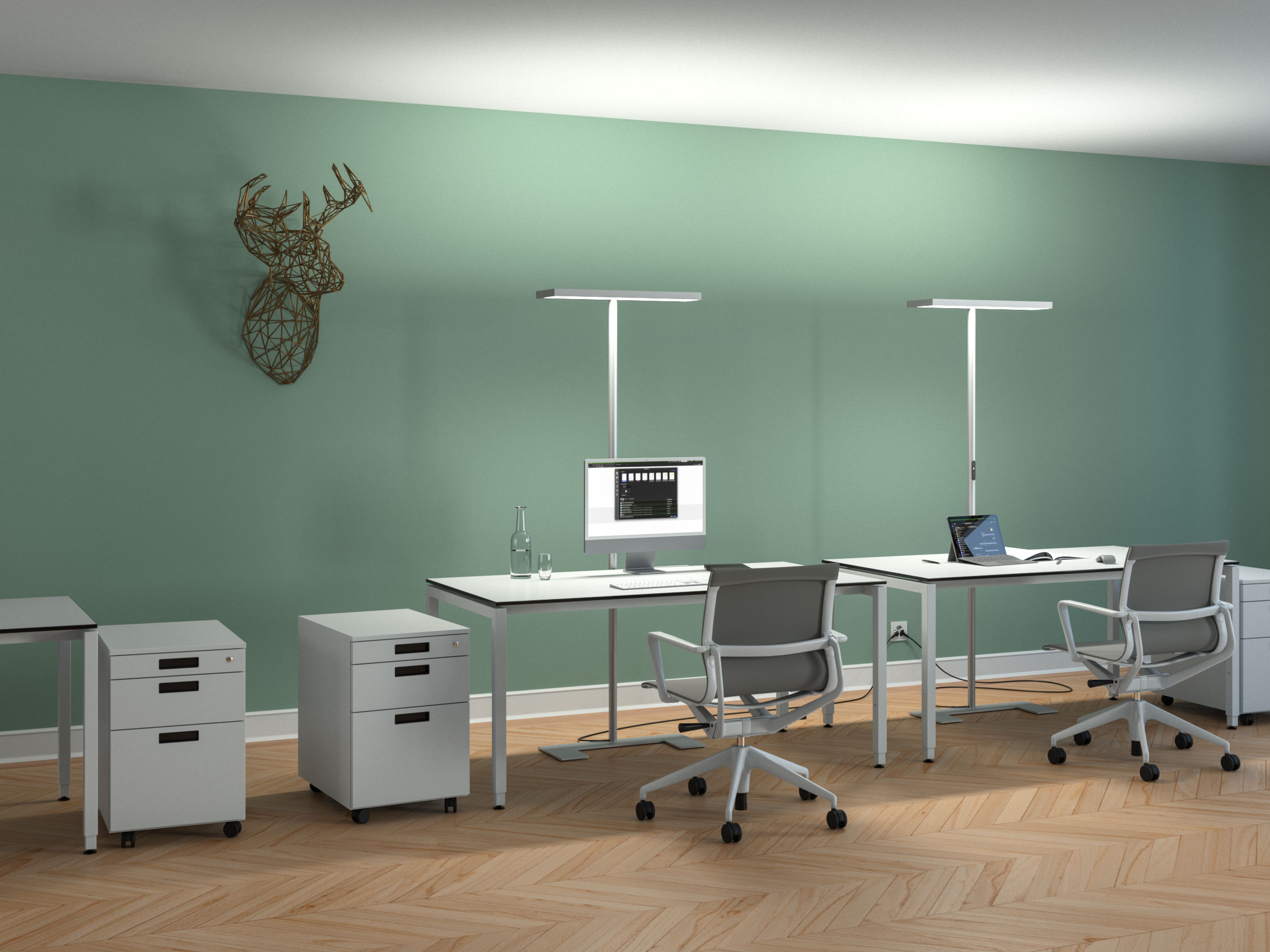

If the daylight intensity decreases, the ECO S floor luminaire automatically keeps the level of illumination on the work surfaces constant

At night – without natural light – the artificial light takes over the task of fully lighting the workstation

Simple design and high-quality materials

ECO S is the perfect symbiosis of aesthetics and state-of-the-art LED lighting technology. Thanks to its understated appearance, the ECO S can be easily integrated into any modern workspace.

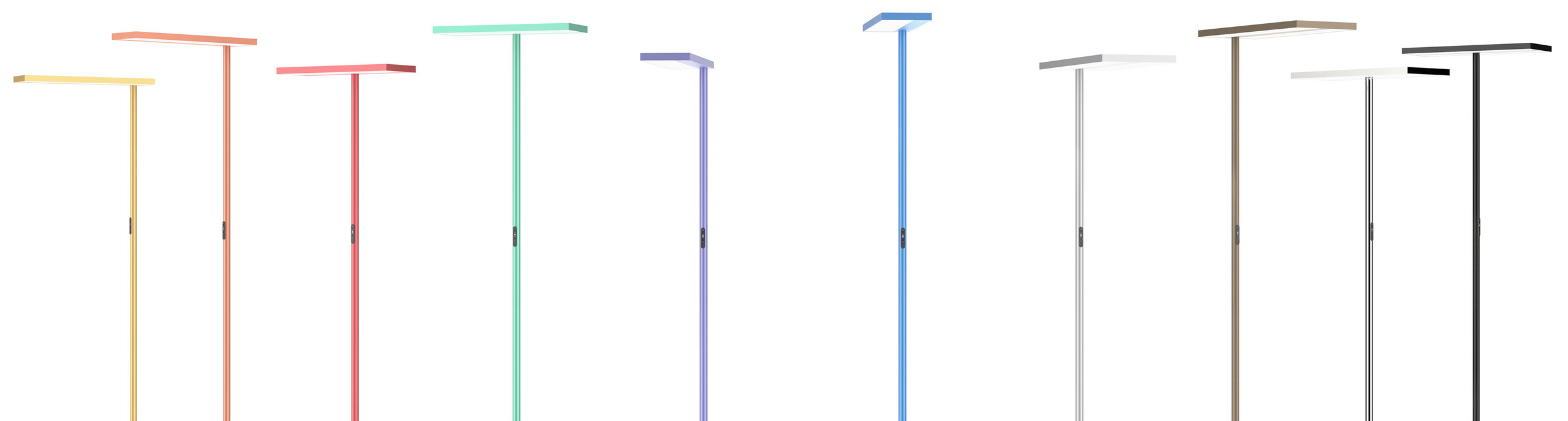

The high-quality materials of the luminaire head, which made of chemically matted and transparent-anodised aluminium, as well as its sleek proportions, give it an extremely elegant overall look. The standard aluminium vertical tube comes in a matt or high-gloss polished finish, both featuring a transparent-anodised finish. In addition to the standard versions, projectspecific surface treatments such as painted, colour-anodised or chromeplated finishes are also available.

Networked swarm

In a network with several Sensonic EDR luminaires, the swarm function can be activated and configured. This prevents «islands of light» from being created in a dark open-plan office where your desk can be lit but the rest of the room is unlit, creating an unpleasant atmosphere.

When the swarm function is activated, the luminaires «communicate» with each other within the same room, the same group or within a defined radius of operation, illuminating the office environment to a pleasant level with their indirect light.

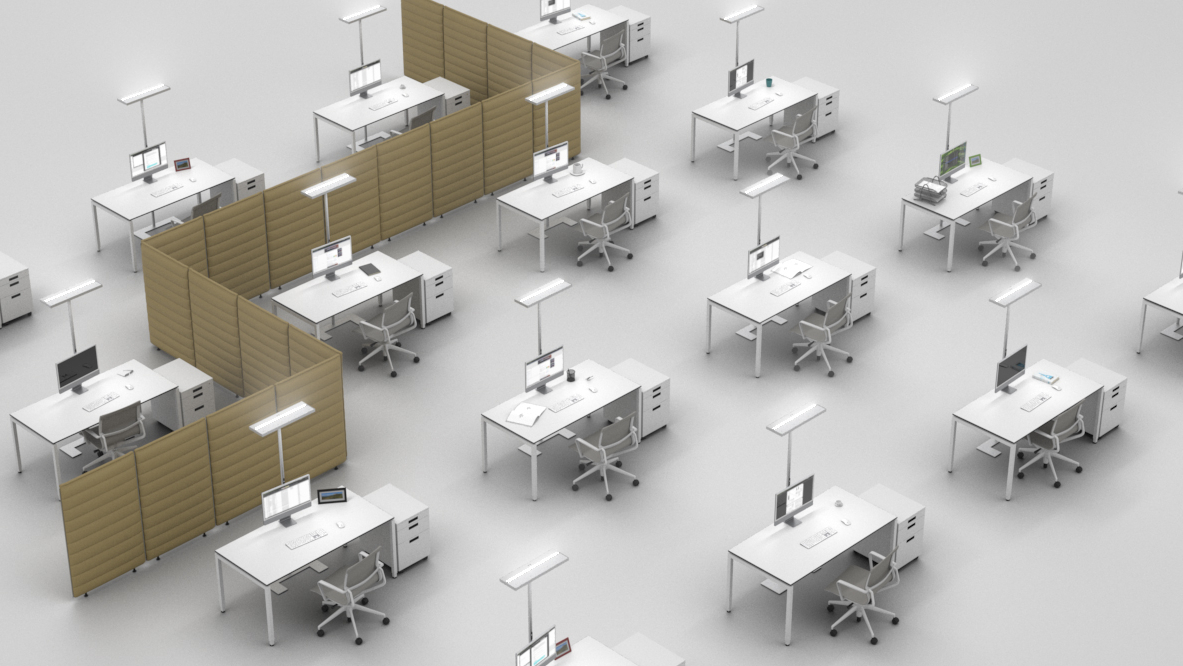

A traditional office set-up during the day: most workstations are in use, ECO S floor luminaires support their respective workstation automatically and in a targeted way

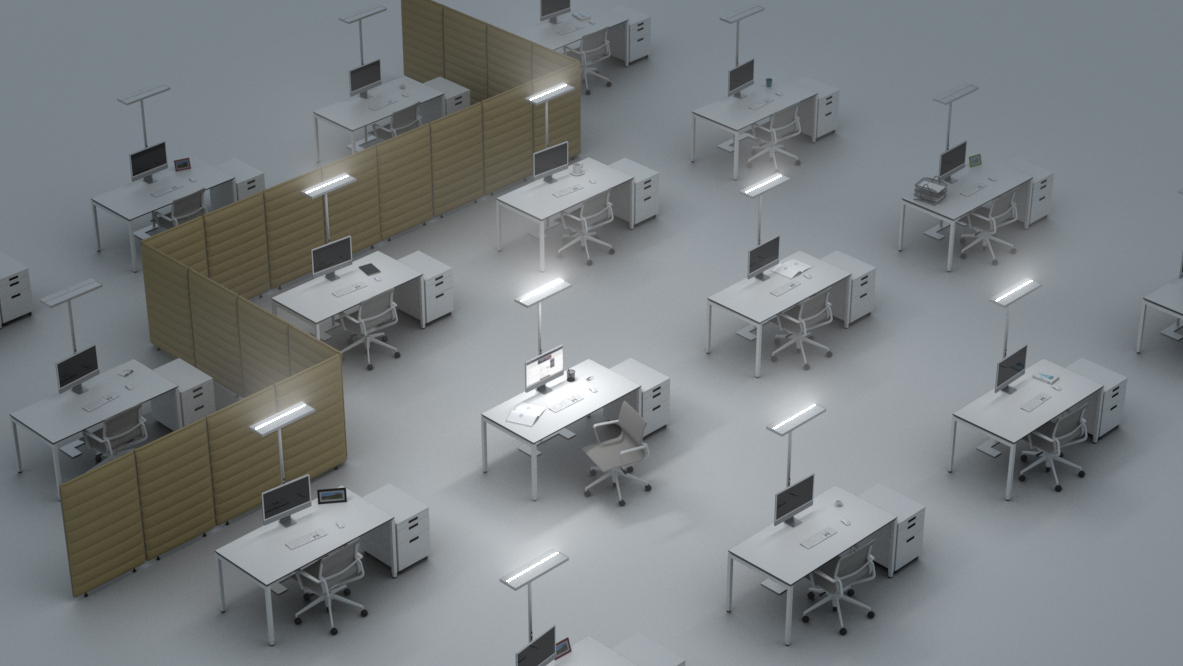

If an individual employee works until late in the evening, the surrounding ECO S floor luminaires enhance the lighting atmosphere with a reduced amount of indirect light, thus creating an «extended island of light». This creates a pleasant lighting ambiance in the office, which has a positive effect on the well-being of the employee.

Thanks to the RTC module, the correct daylight temperature curve is automatically used wherever it is in the world

The right light at all times

The integrated RTC module (real time clock) and the geographical location stored in the control system enable the tunable white circadian function (TWC) and cycle time programming.

With the location definition feature, the luminaire “knows” where it is located and what time it is. This allows different scenarios to be programmed using cycles times that specify, for example, when the motion detector should be activated or deactivated or whether a stored lighting scene should be called up at a certain time.

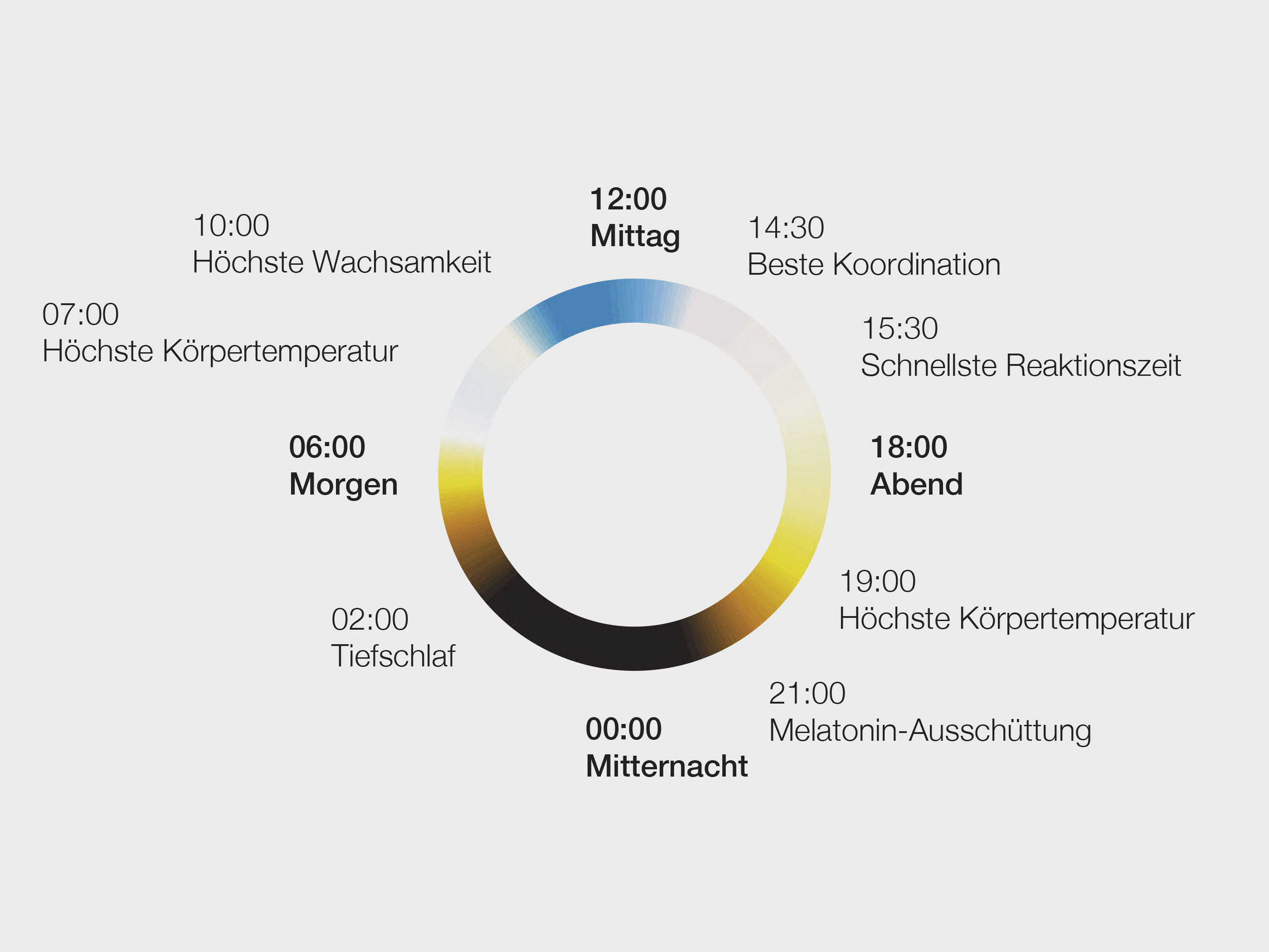

The daylight curve can be authentically reproduced with TWC

The TWC luminaire version is a tunable white luminaire where the colour temperature follows the daylight temperature curve, making it ideal for HCL (human centric lighting) projects. This curve can be customised on request.

With the Lumobi app, both the daylight temperature curve and the cycle times can be set and adjusted on site or the time and location can be updated.

Table adapter

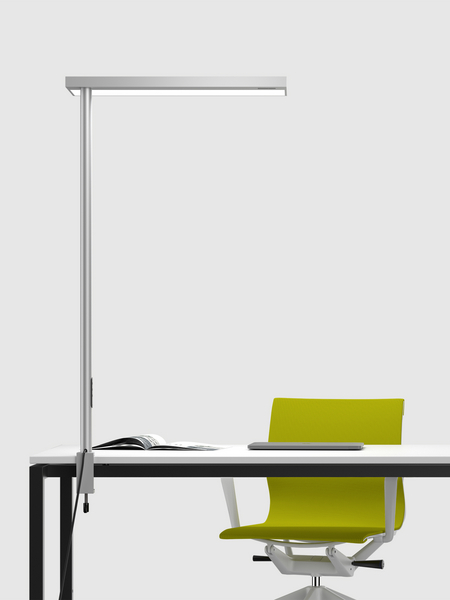

Not only is the ECO S available with a simple stand, but also with a universal table adapter and a vertical tube in the correct length for your needs.

This has the advantage that, when using an adjustable table, the luminaire is raised with the table so that the main focus of light on the table is not changed. The simple design of the luminaire is also continued in the universal table adapter. Table adapters for USM tables are also available. We are happy to provide other special designs on request.

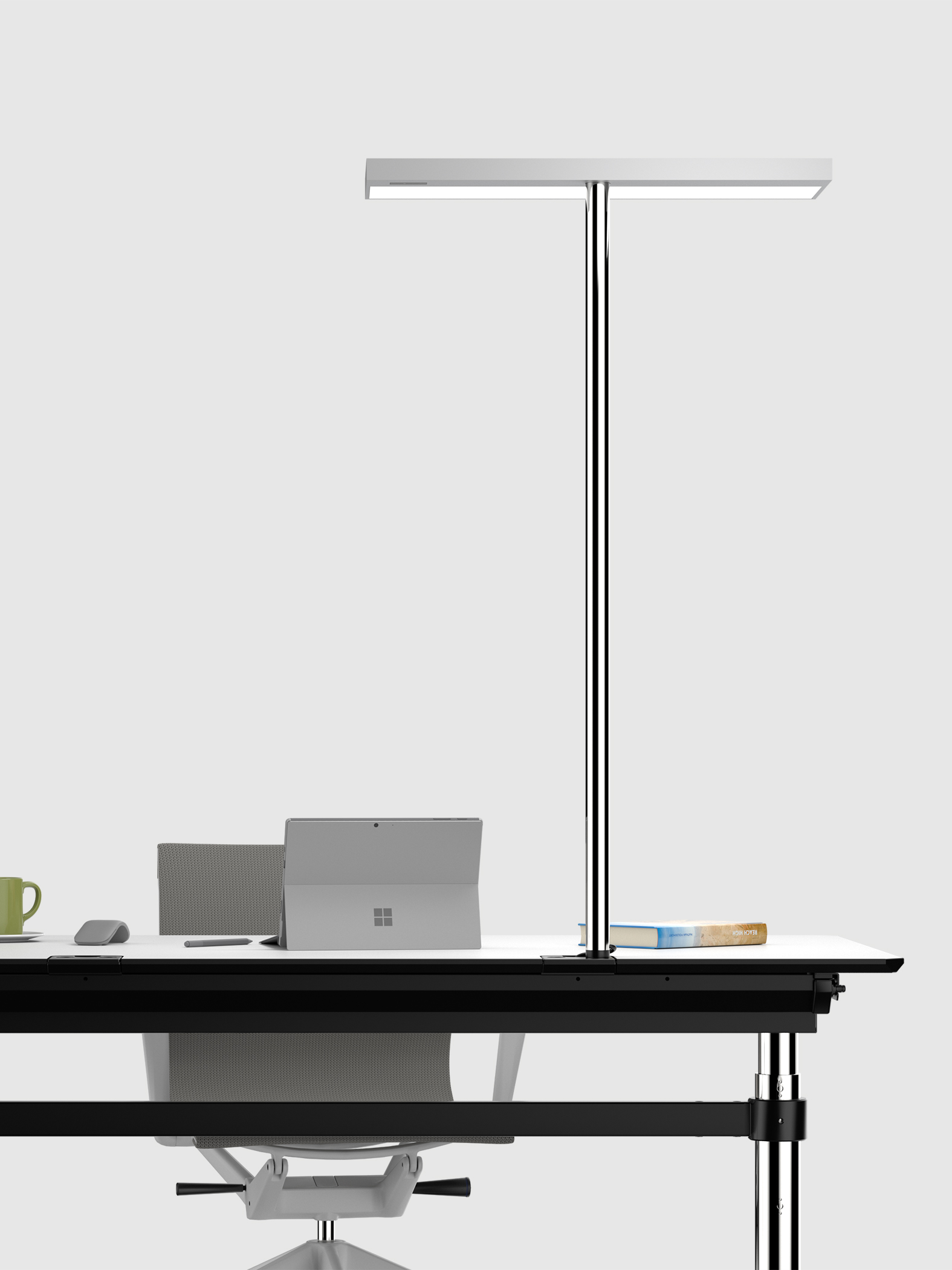

ECO S attached to a table with the universal adapter

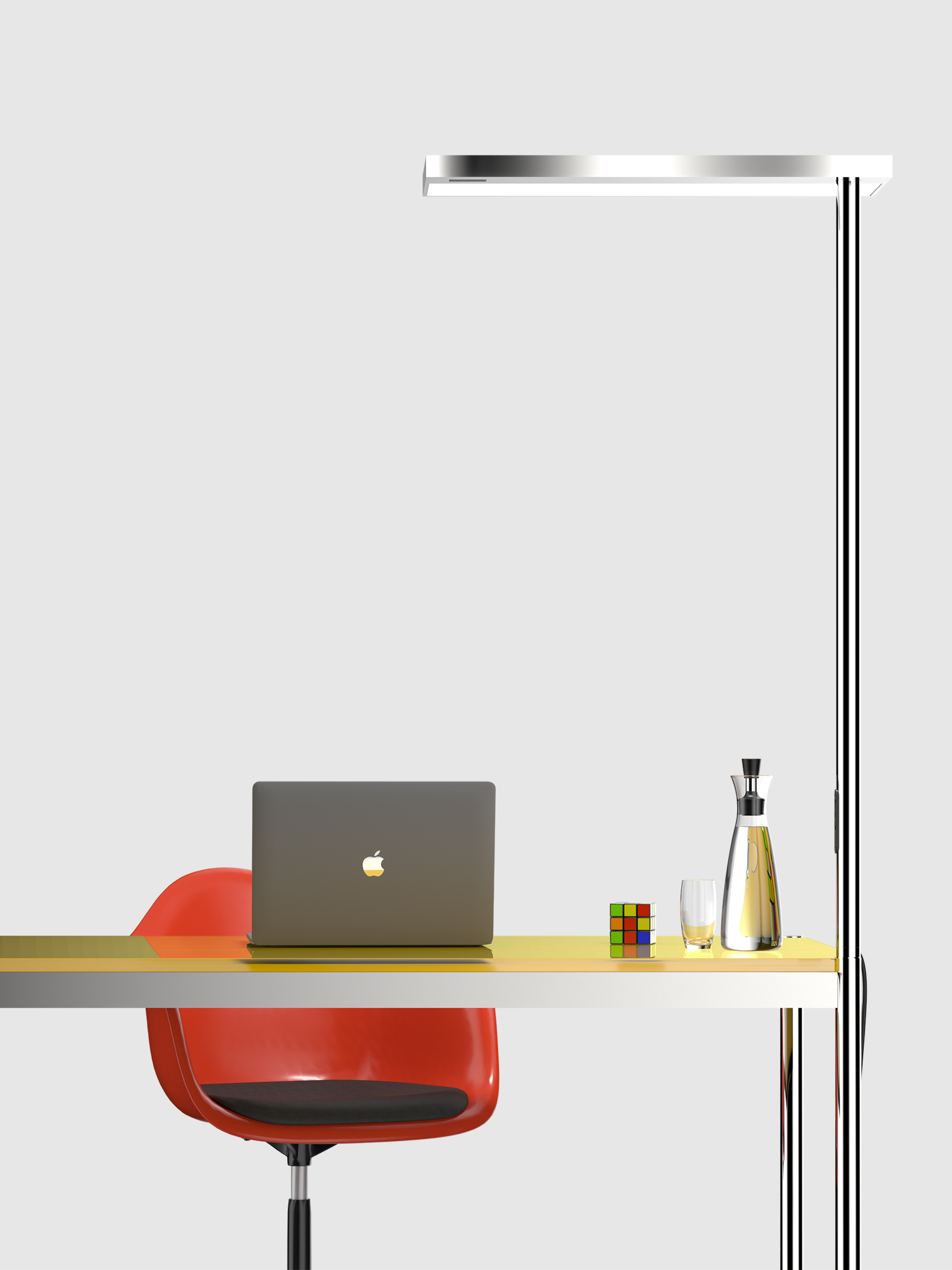

ECO S attached to the USM adaptation point with the table adapter

ECO S attached to the USM Haller table with USM table leg adapter

BLE control app

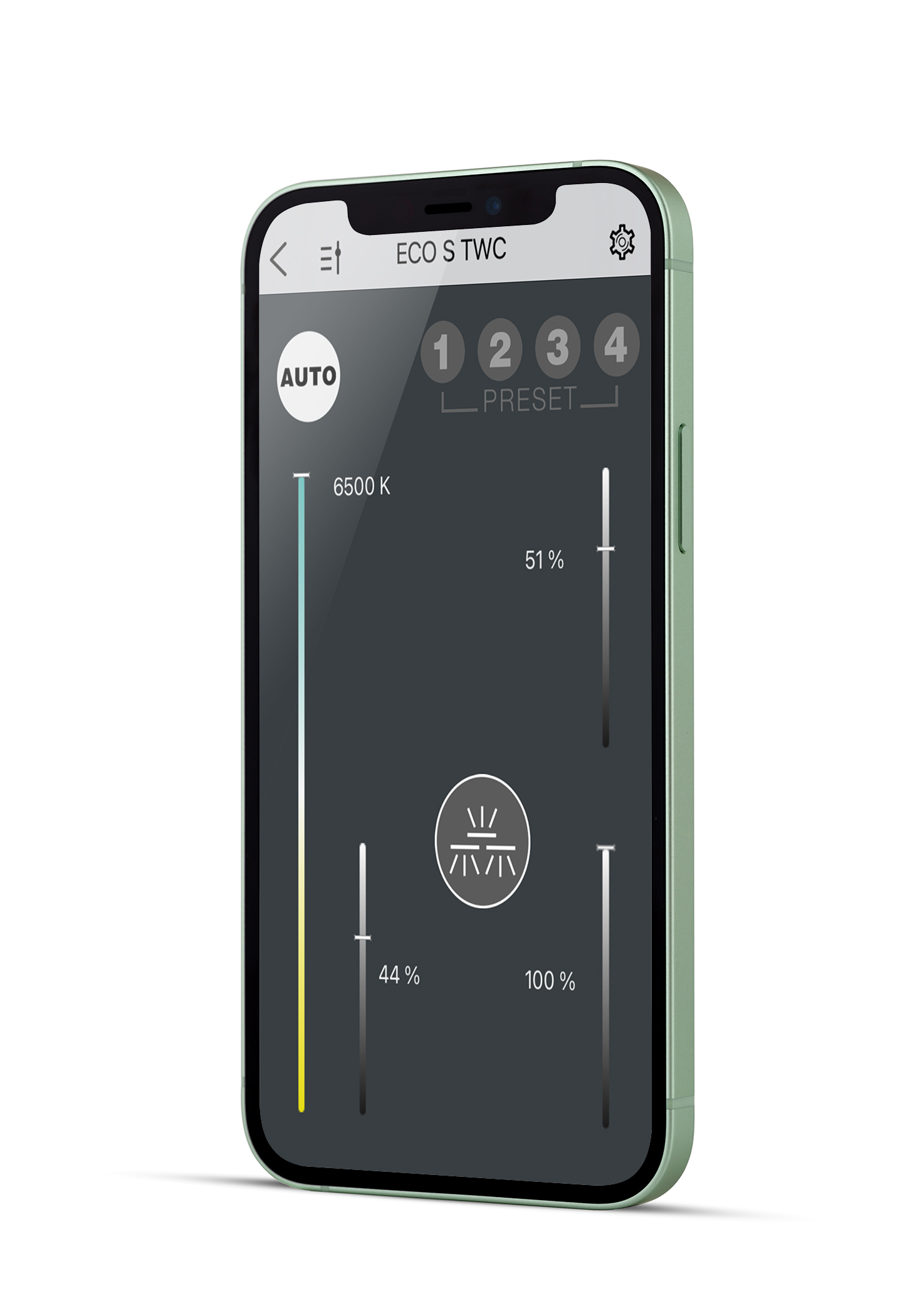

With the BLE (Bluetooth Low Energy) module, the luminaire can be operated via an iOS or Android app on a smartphone. This provides a multitude of additional settings options.

The BLE module also allows several luminaires to be networked. These can be divided into rooms and/or groups so that they can be jointly controlled using an external wireless switch, for example, or a swarm function can be configured.

A gateway can also be used to establish a connection to a superordinate information or management system. For example, light settings can be transmitted from a building management system to the luminaires, or monitoring functions can be carried out.
