4200 Results
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
3595 lm
37 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3595 lm

Glare rating UGR at 90° angle
Cross:
12.1
Parallel:
12.1
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
3595 lm
37 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3595 lm

Glare rating UGR at 90° angle
Cross:
12.1
Parallel:
12.1
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
2675 lm
25 W
On/Off

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter On/Off. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2675 lm

Glare rating UGR at 90° angle
Cross:
11.1
Parallel:
11.1
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
2675 lm
25 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2675 lm

Glare rating UGR at 90° angle
Cross:
11.1
Parallel:
11.1
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
2675 lm
25 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2675 lm

Glare rating UGR at 90° angle
Cross:
11.1
Parallel:
11.1
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
1842 lm
16.5 W
On/Off

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter On/Off. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

1842 lm

Glare rating UGR at 90° angle
Cross:
9.8
Parallel:
9.8
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
1842 lm
16.5 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

1842 lm

Glare rating UGR at 90° angle
Cross:
9.8
Parallel:
9.8
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
21.6°
1842 lm
16.5 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 21.6°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

1842 lm

Glare rating UGR at 90° angle
Cross:
9.8
Parallel:
9.8
Cut-off angle
38°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
3912 lm
37 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3912 lm

Glare rating UGR at 90° angle
Cross:
11.7
Parallel:
11.7
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
3912 lm
37 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3912 lm

Glare rating UGR at 90° angle
Cross:
11.7
Parallel:
11.7
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2911 lm
25 W
On/Off

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter On/Off. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2911 lm

Glare rating UGR at 90° angle
Cross:
10.7
Parallel:
10.7
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2911 lm
25 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2911 lm

Glare rating UGR at 90° angle
Cross:
10.7
Parallel:
10.7
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2911 lm
25 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2911 lm

Glare rating UGR at 90° angle
Cross:
10.7
Parallel:
10.7
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2005 lm
16.5 W
On/Off

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter On/Off. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2005 lm

Glare rating UGR at 90° angle
Cross:
9.4
Parallel:
9.4
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2005 lm
16.5 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2005 lm

Glare rating UGR at 90° angle
Cross:
9.4
Parallel:
9.4
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
27°
2005 lm
16.5 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 27°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2005 lm

Glare rating UGR at 90° angle
Cross:
9.4
Parallel:
9.4
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 79'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
35°
3847 lm
37 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 35°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3847 lm

Glare rating UGR at 90° angle
Cross:
15
Parallel:
15
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads
LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
35°
3847 lm
37 W
Casambi

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 35°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Control via Casambi app (Android/iOS) with BLE-capable mobile devices (Bluetooth Low Energy) or „Casambi Ready“ products. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

3847 lm

Glare rating UGR at 90° angle
Cross:
15
Parallel:
15
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 73'000 h at 25°C
Standby
< 0.15 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads

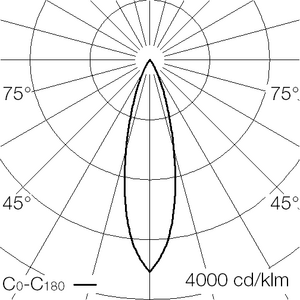

LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
35°
2863 lm
25 W
On/Off

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 35°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter On/Off. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2863 lm

Glare rating UGR at 90° angle
Cross:
14
Parallel:
14
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads

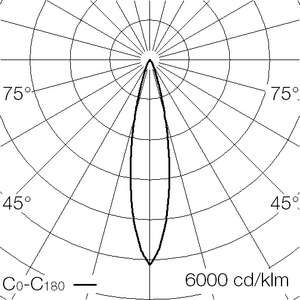

LVK
Downlight
Recessed luminaire
with ceiling trim
Darklight
Ø 160 x 109 mm
3000 K
CRI ≥ 90
35°
2863 lm
25 W
DALI-2

LIOR Downlight for recessed ceiling installation. COB-LED Lightengine in colour temperature 3000 K, high level of colour consistency (2 SDCM initially) and good colour rendering (CRI ≥ 90). Half-value angle 35°. Die-cast aluminium heatsink, powder-coated jet black RAL 9005. PMMA lens optics in a particularly flat design. Darklight anti-dazzle cone made from plastic, with a high-gloss (vaporised) aluminium finish and a colourless scratch-resistant protective coating. Converter DALI-2. Secondary cable with adapter for pre-installing the converter. Powered by strain-relieved terminal. Recessed ring with plastic flange traffic white RAL 9016. Direct installation in ceiling cut-out of Ø 145 mm. Attachment with screwable flip mounting levers. 2 packing units. Order accessories separately.

Light source/s
3000 K, CRI ≥ 90, 2 SDCM
Luminous flux

2863 lm

Glare rating UGR at 90° angle
Cross:
14
Parallel:
14
Cut-off angle
35°
Shielding angle
30°
Service Live
L80/B10 78'000 h at 25°C
Standby
< 0.5 W
Power supply
230 V 0/50/60 Hz
Protection class
Class II (protective insulation)
Protection class IP
IP20
Downloads

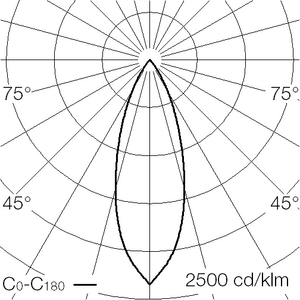

LVK

Get to know us

Are you interested in our products? Would you like to find out more about specialized versions? Do you have questions about sales or manufacturing? Or would you like to know something about our product development? Contact us directly, we are happy to help you.
